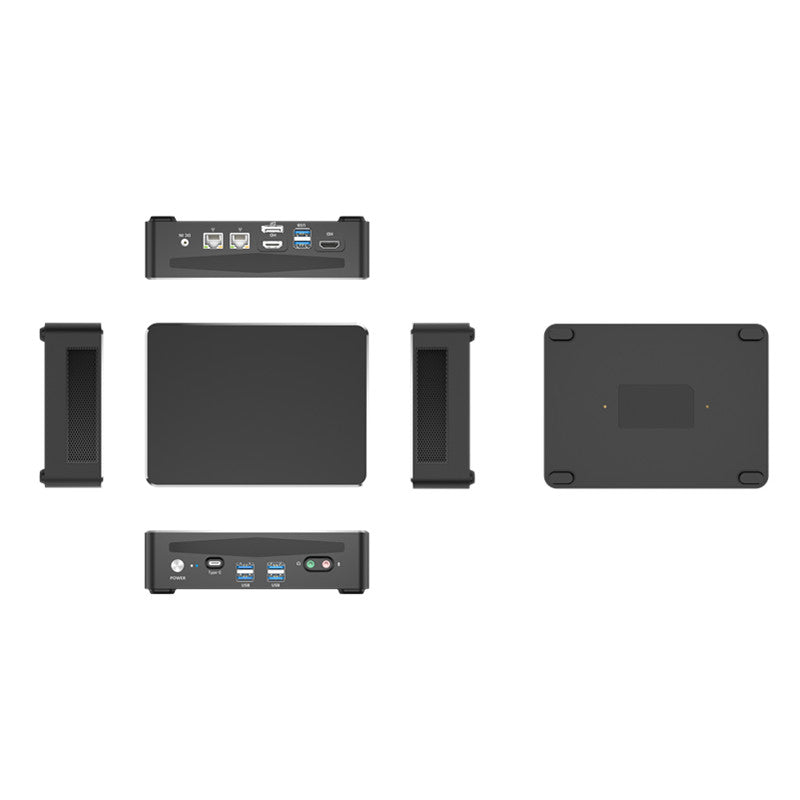

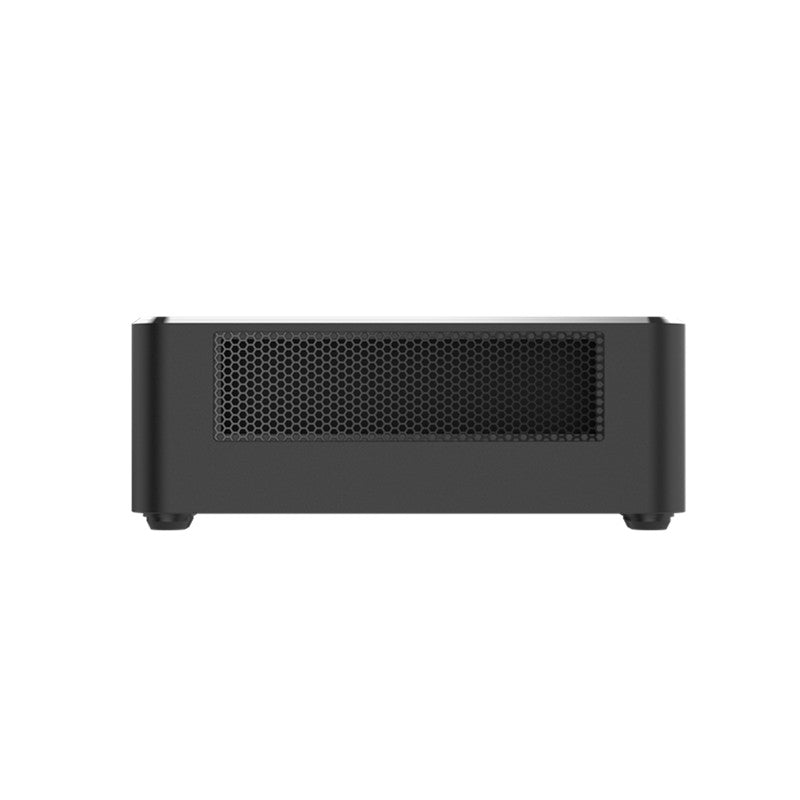

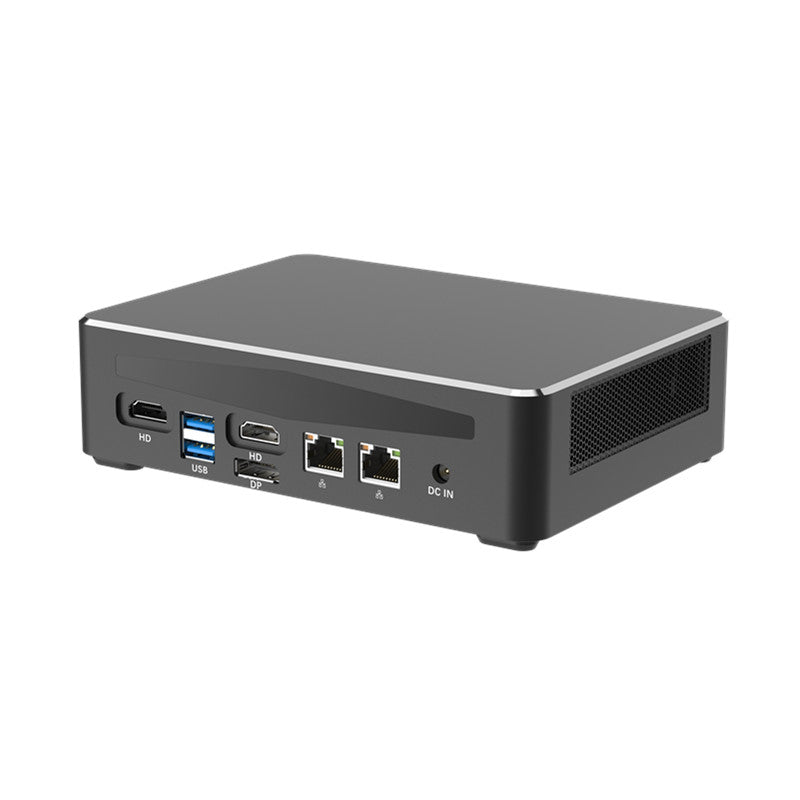

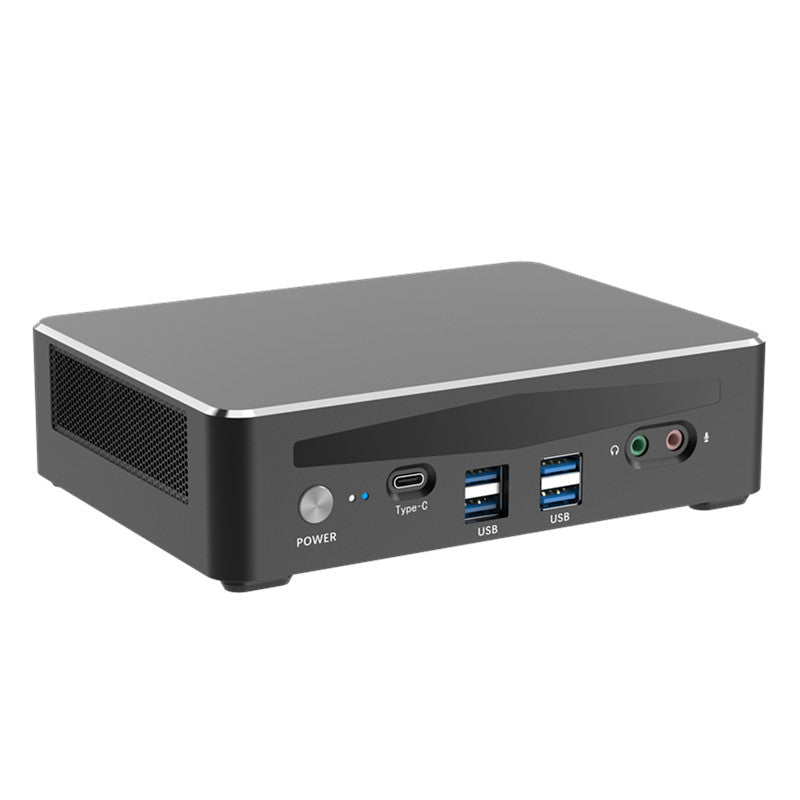

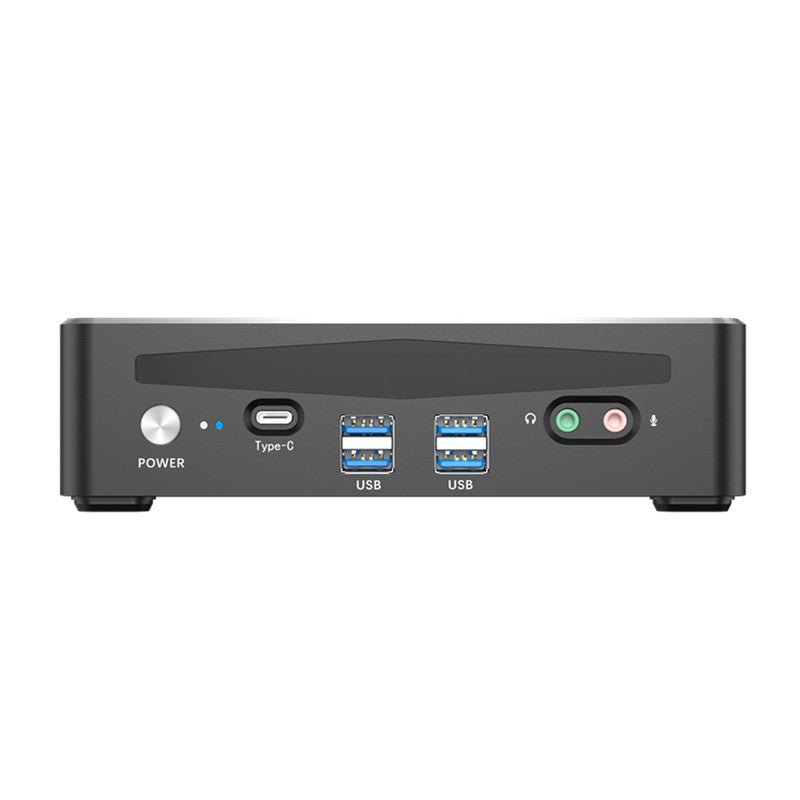

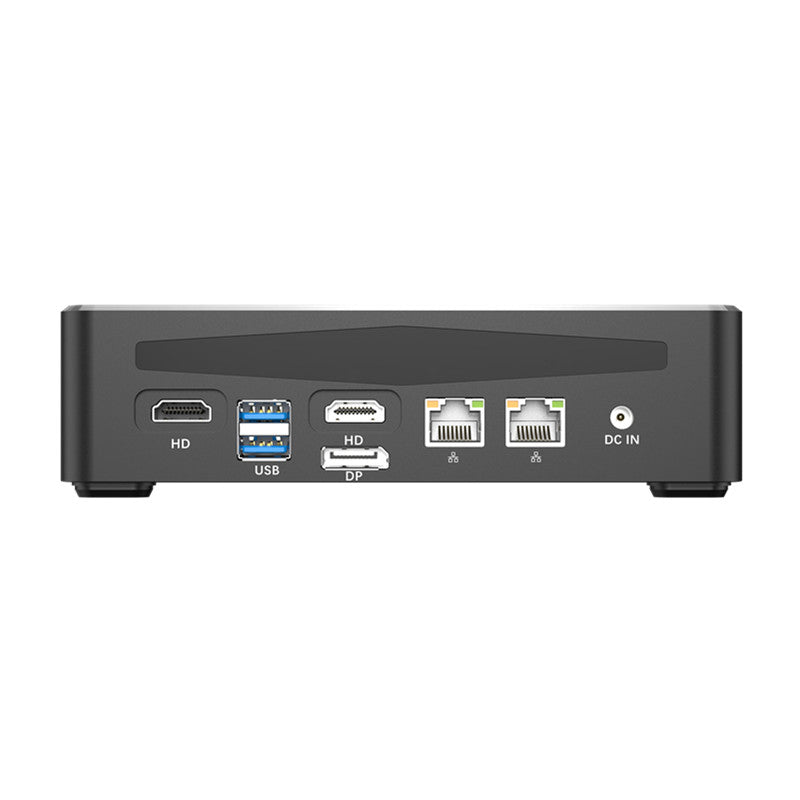

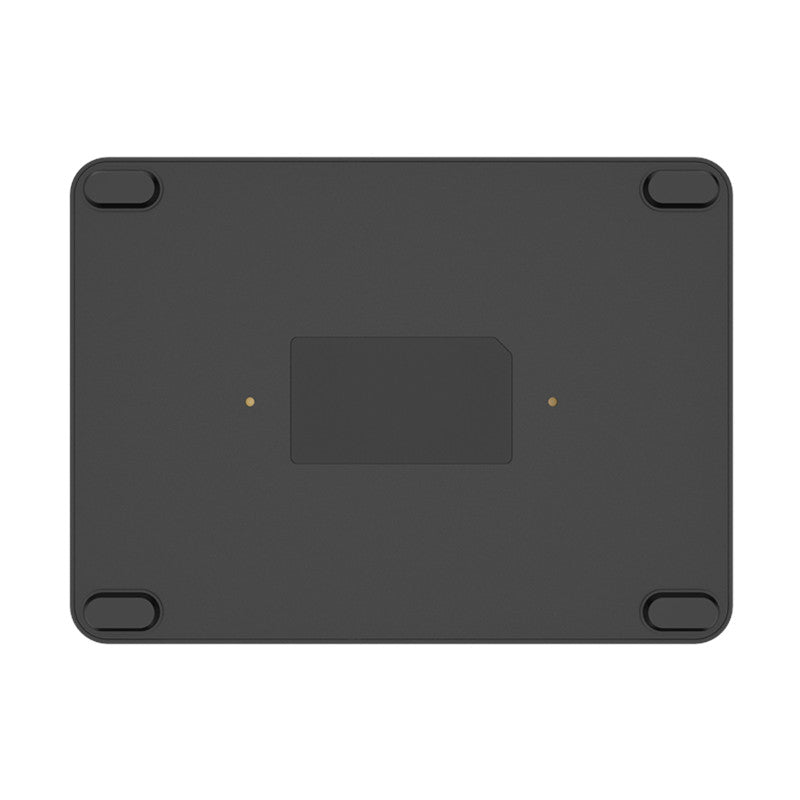

ameriDroid F9 Mini PC — Intel Core i5-1240P / 32GB DDR4 / 512GB Storage / Windows 11 Pro

The F9 Mini PC is a compact and powerful desktop solution featuring the 12th Gen Intel Core i5-1240P processor, 32GB DDR4 memory, and 512GB storage. Pre-installed with Windows 11, it delivers strong multi-core performance for productivity, light content creation, media playback, and everyday computing — all in a small, quiet chassis with excellent connectivity and multi-display support.

KEY FEATURES

• Intel Core i5-1240P: 12 cores (4P + 8E) / 16 threads, up to 4.4 GHz boost — excellent balance of performance and efficiency
• 32GB DDR4 Memory: Dual-channel 2×16GB configuration for smooth multitasking
• 512GB Storage: Fast and reliable storage for the operating system and applications
• Windows 11 Pre-installed: Ready to use out of the box
• Multi-Display Support: Up to four simultaneous displays via dual HDMI, DisplayPort, and USB-C (Thunderbolt 4)
• 2.5GbE Networking: Onboard Intel 2.5G Ethernet for high-speed wired connections
• Silent Copper Cooling: Efficient all-copper turbo fan designed for 24/7 operation
• Rich I/O: Multiple USB ports, dual Ethernet, audio jacks, and expansion options

SPECIFICATIONS

Processor:

• Intel Core i5-1240P (12th Gen Alder Lake)
• 12 Cores (4 Performance + 8 Efficient) / 16 Threads
• Up to 4.4 GHz Max Turbo Frequency
• 12MB Intel Smart Cache
• TDP: 28W (configurable)
• Intel Iris Xe Graphics

Memory:

• 32GB DDR4 (2 × 16GB SODIMM)
• Dual SODIMM slots (upgradable up to 64GB)

Storage:

• 512GB M.2 SATA SSD Storage
• Expansion options available via M.2 and SATA slots

Graphics & Display:

• Integrated Intel Iris Xe Graphics
• 2 × HDMI 2.0 (4K@60Hz)
• 1 × DisplayPort 1.4
• 1 × USB Type-C (Thunderbolt 4 / DisplayPort Alt Mode)
• Supports up to 4 displays simultaneously

Networking:

• Onboard Intel 2.5GbE Ethernet
• Additional Gigabit Ethernet port
• Wi-Fi Module On board

USB & I/O:

• 4 × USB 3.0
• 2 × USB 2.0
• 1 × USB Type-C (Thunderbolt 4)
• 1 × Microphone jack
• 1 × Speaker jack
• 1 × Power button

Power & Cooling:

• DC Input: 12–19V (recommended 19V / 4.7A)
• All-copper silent turbo fan
• Designed for continuous operation

Other Features:

• PXE Boot
• Auto Power On
• RTC Wake
• Wake-on-LAN

Physical:

• Dimensions: Approx. 175.5 × 128.5 × 45.5 mm
• Chassis: Compact plastic shell
• Net Weight: Approx. 0.49 kg

Operating System:

• Windows 11 Pre-installed

What's Included:

• 1 × F9 Mini PC
• 1 × Power Adapter
• 1 × Power Cord
• 1 × VESA / Mounting Bracket
• 1 × Screws Bag

NOTES

• This configuration features the Intel Core i5-1240P, 32GB DDR4 (2×16GB), and 512GB storage
• Ideal for office productivity, digital signage, light content creation, media centers, and general home/office use
• Quiet operation and compact size make it suitable for desktop or VESA-mounted setups
• Warranty is 16 weeks starting from the date of delivery.
