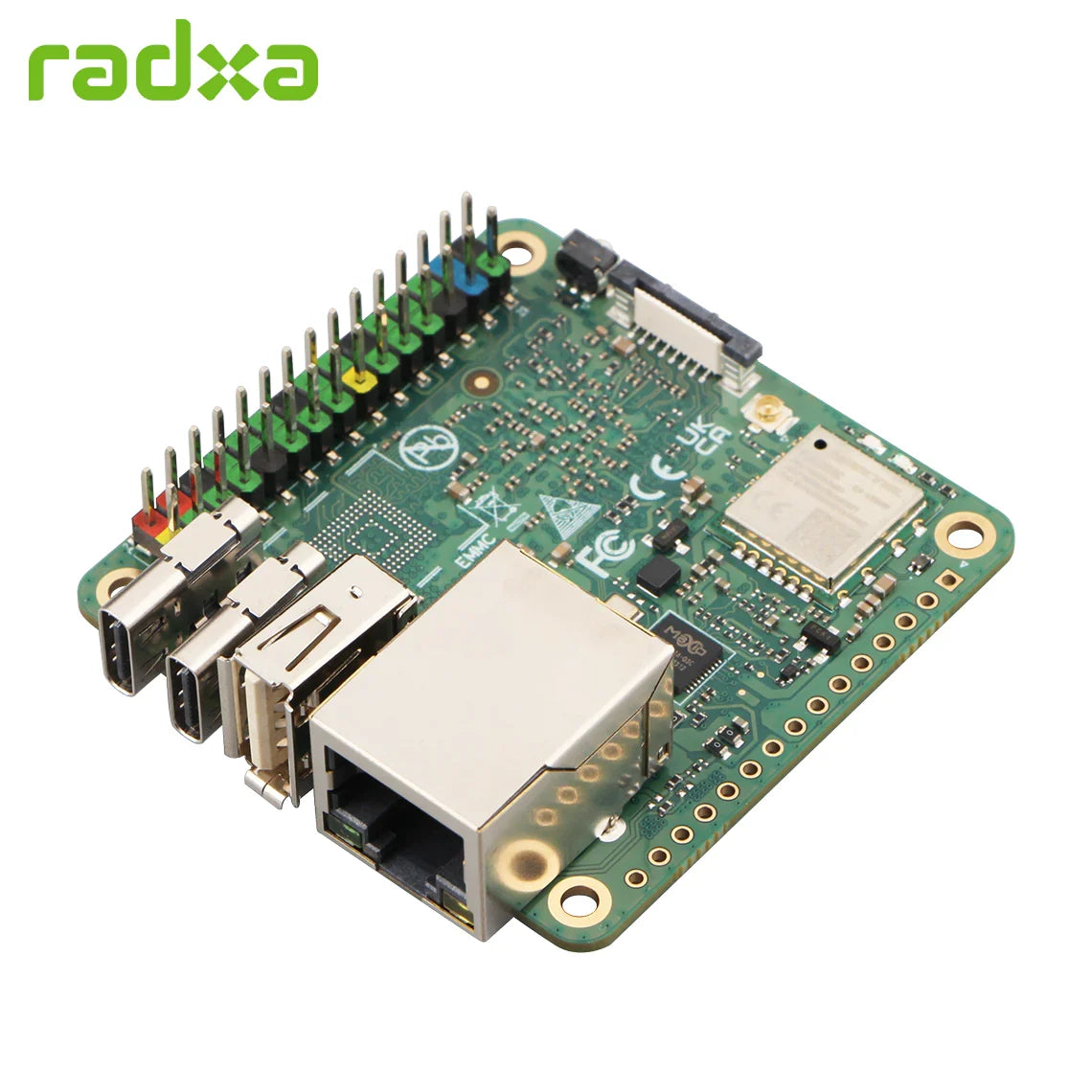

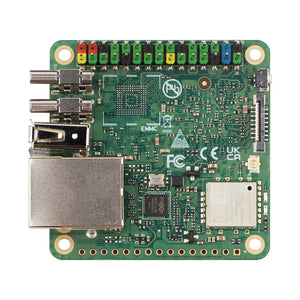

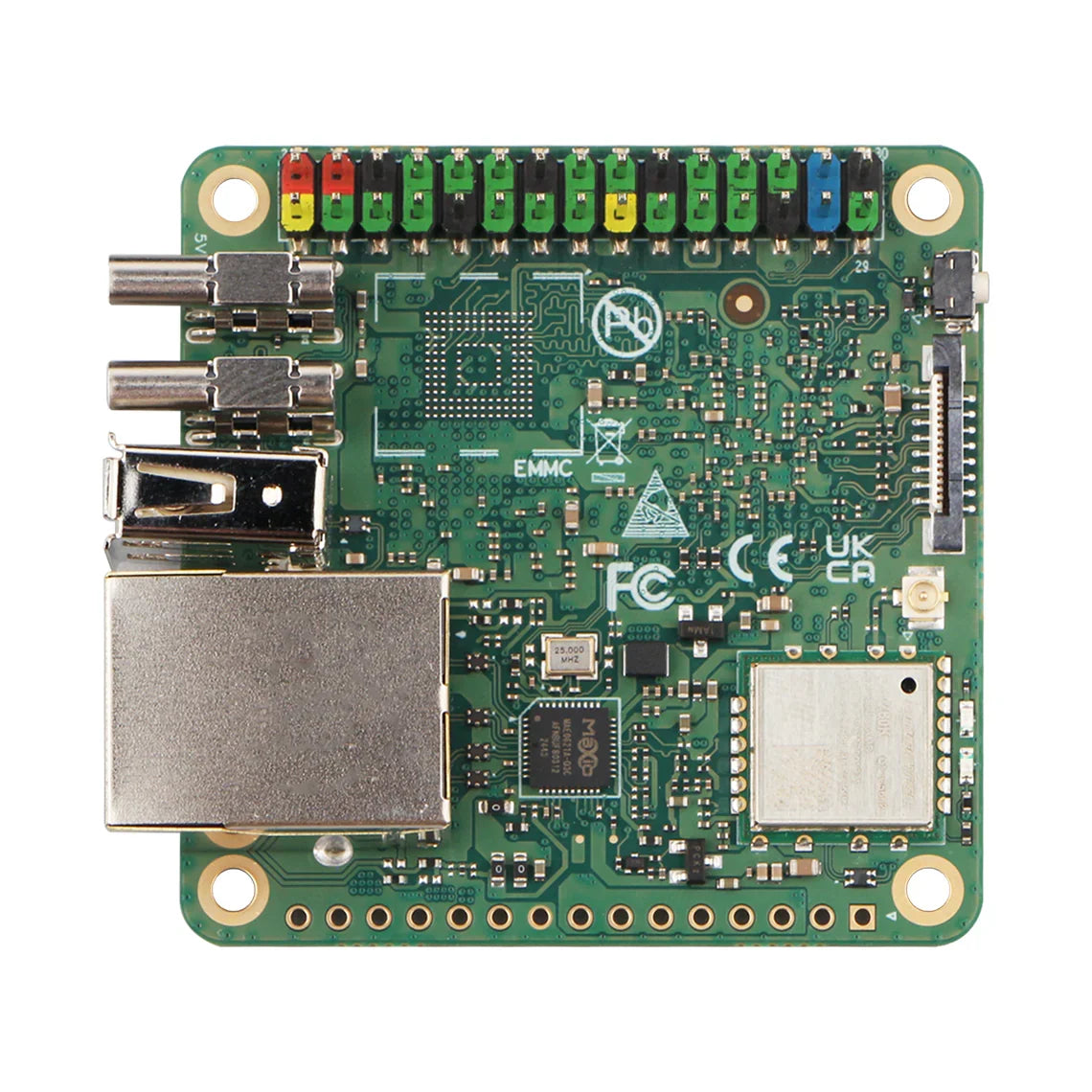

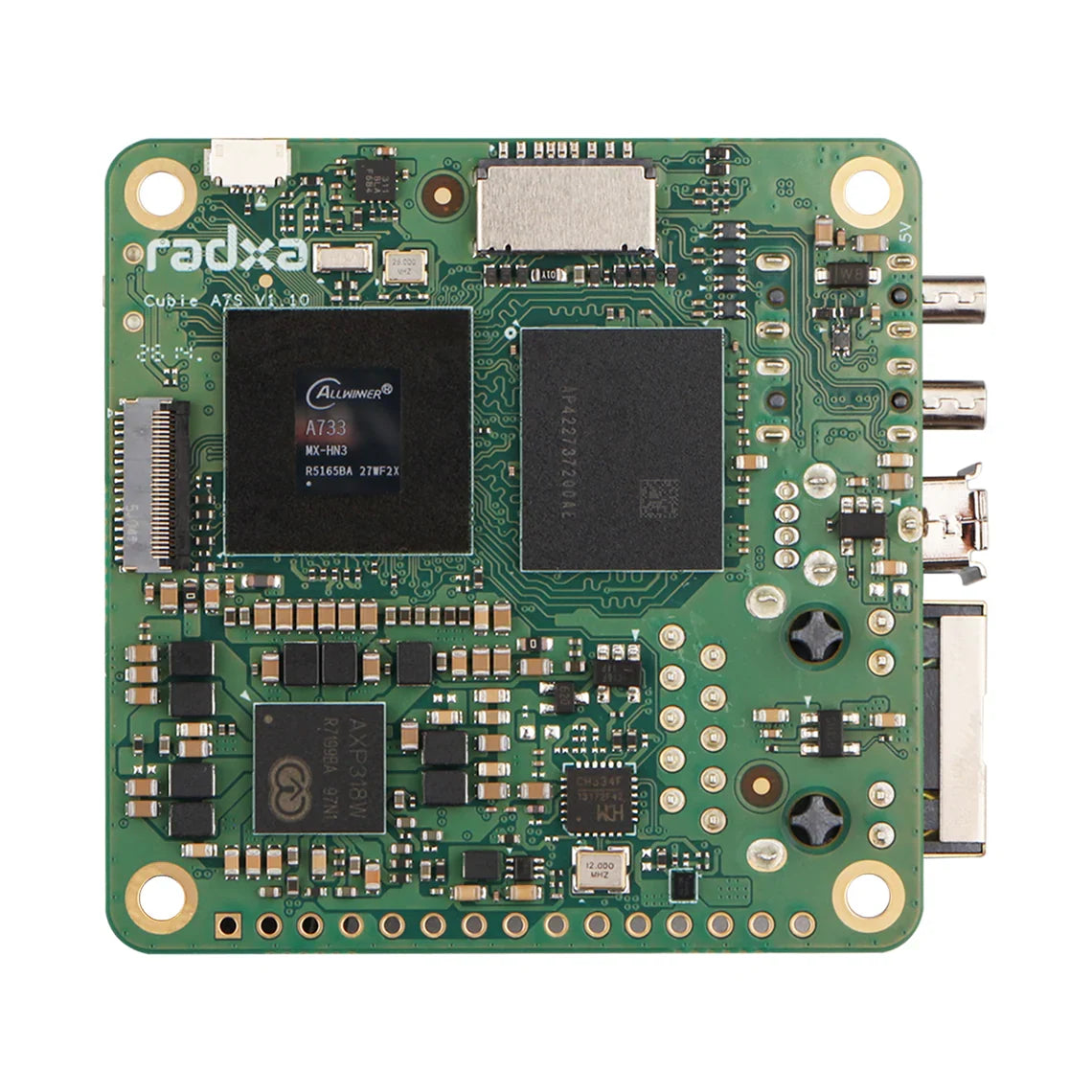

Radxa Cubie A7S (4GB / 8GB RAM) — Pocket-Sized Edge AI Single Board Computer

The Radxa Cubie A7S is an ultra-compact high-performance single board computer based on the Allwinner A733 SoC. Measuring just 51 × 51 mm, it packs an octa-core CPU, 3 TOPS NPU, LPDDR5 memory, Wi-Fi 6, Gigabit Ethernet, and PCIe expansion into a true pocket-sized form factor. Available in 4GB and 8GB LPDDR5 variants, it is ideal for edge AI, computer vision, robotics, IoT gateways, and compact embedded projects.

KEY FEATURES

• Allwinner A733 SoC: 2× Cortex-A76 (up to 2.0 GHz) + 6× Cortex-A55 for strong multi-core performance
• 3 TOPS NPU: On-device AI acceleration supporting INT4/INT8/INT16/FP16/BF16
• LPDDR5 Memory: Available in 4GB and 8GB versions
• Ultra-Compact Size: Only 51 × 51 mm
• 4K Multimedia: USB-C DisplayPort Alt Mode up to 4K@60 + H.265/VP9 decoding
• Wi-Fi 6 + Bluetooth 5.4 (antenna included)
• Gigabit Ethernet
• PCIe 3.0 Expansion via FPC connector (supports NVMe SSD)
• MIPI CSI Camera Interface for vision applications
• Dual USB-C Ports (one with high-speed data + DP Alt Mode, one for power/OTG)

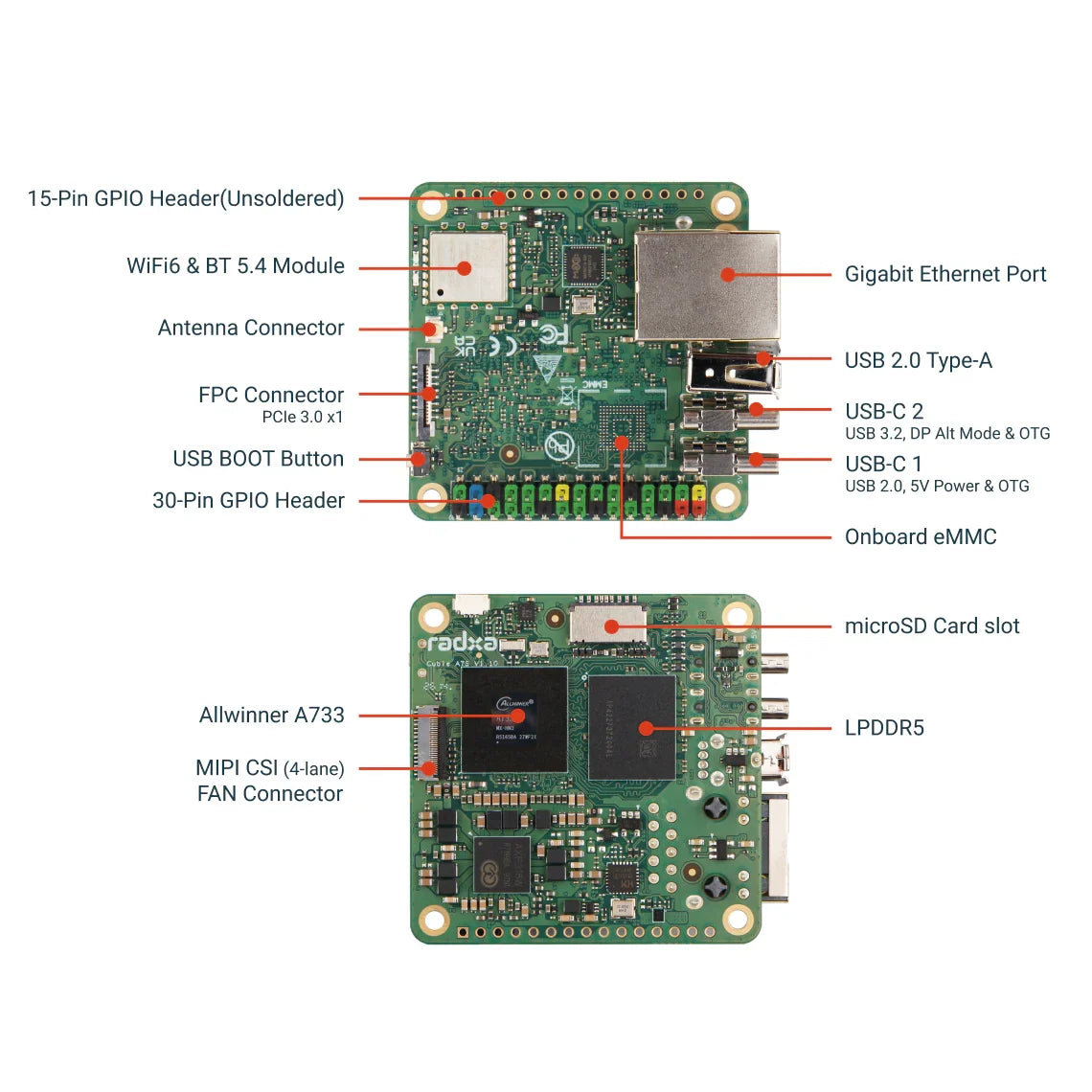

SPECIFICATIONS

Processor:

• SoC: Allwinner A733
• CPU: 2× ARM Cortex-A76 (up to 2.0 GHz) + 6× ARM Cortex-A55
• GPU: Imagination PowerVR BXM-4-64 MC1 (OpenGL ES 3.x, OpenCL 3.0, Vulkan 1.3)
• NPU: 3 TOPS @ INT8
• MCU: RISC-V Xuantie E902 (up to 200 MHz)

Memory:

• 4GB or 8GB LPDDR5

Storage:

• no eMMC options available
• microSD card slot
• PCIe 3.0 x1 via FPC connector (for NVMe SSD expansion)

Display:

• 1× USB-C with DisplayPort Alt Mode (up to 4K@60)

Video Capabilities:

• Encode: H.264 / H.265 up to 4K@30fps
• Decode: H.265 / VP9 / AVS2 up to 4K@60fps, H.264 up to 4K@30fps

Camera:

• 1× 4-lane MIPI CSI

Networking:

• 1× Gigabit Ethernet
• Onboard Wi-Fi 6 + Bluetooth 5.4 (antenna included)

USB & Expansion:

• 1× USB-C (USB 3.2 + DisplayPort Alt Mode + OTG)
• 1× USB-C (USB 2.0 + 5V Power + OTG)
• 1× USB 2.0 Type-A
• GPIO headers (30-pin + 15-pin)
• Fan connector

Power:

• 5V via USB-C (PD supported, 3A recommended)

Dimensions:

• 51 × 51 mm

Operating System Support:

• Radxa OS / Debian Linux
• Android 13
• Other community Linux images

What's Included:

• 1× Radxa Cubie A7S board
• 1× Wi-Fi / Bluetooth antenna

NOTES

• Available in 4GB and 8GB LPDDR5 variants — select your preferred option on the product page
• eMMC storage option not available
• PCIe NVMe expansion requires an FPC adapter / cable
• Ideal for edge AI, robotics, smart cameras, compact gateways, and space-constrained embedded projects
