SPECIFICATIONS

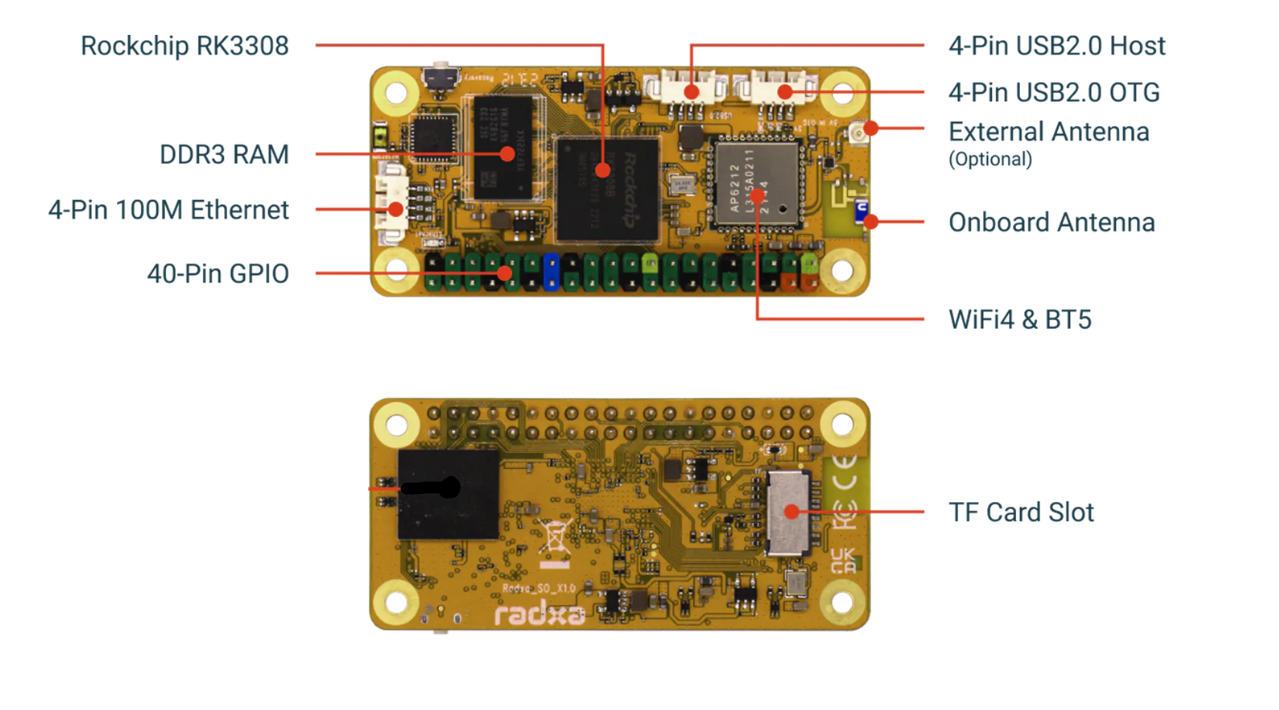

• Rockchip RK3308BS Quad Cortex-A35 64bit SOC @1.3GHz

• 512MB DDR3 RAM

• USB 2.0 OTG (via 4-pin MX1.25mm connector)
• USB 2.0 HOST (via 4-pin MX1.25mm connector)
• 10/100Mbit Ethernet (via 4-pin MX1.25mm connector)
• 802.11 b/g/n Wifi (4) + Bluetooth 5.0 with external antenna connector
• We currently offer the variant with No eMMC.
• Reset button
• Maskrom button
• microSD card slot
• 40 pin GPIO header (not included)
• I2C x4
• PWM x3
• SPI x2
• UART x3
• I2S0 x1
• 5V DC power in x2
• 3.3V DC power in x2
• ARMv8 Instruction Set
• Debian, Ubuntu Linux support
• Hardware access/control library for Linux
• Power demand idle: 0.5W / full load: <=5W
• CPU does only need heat management when operated continuously under high load or high environmental temperature!
• Operating temperature 0-50°C
• Dimensions 65x30mm

NOTES

• Getting Started: https://docs.radxa.com/en/rockpi/rocks0/getting-started/preparation
• Shipping from Kentucky.

Warranty is valid for a year, starting upon date of receipt.
