Description

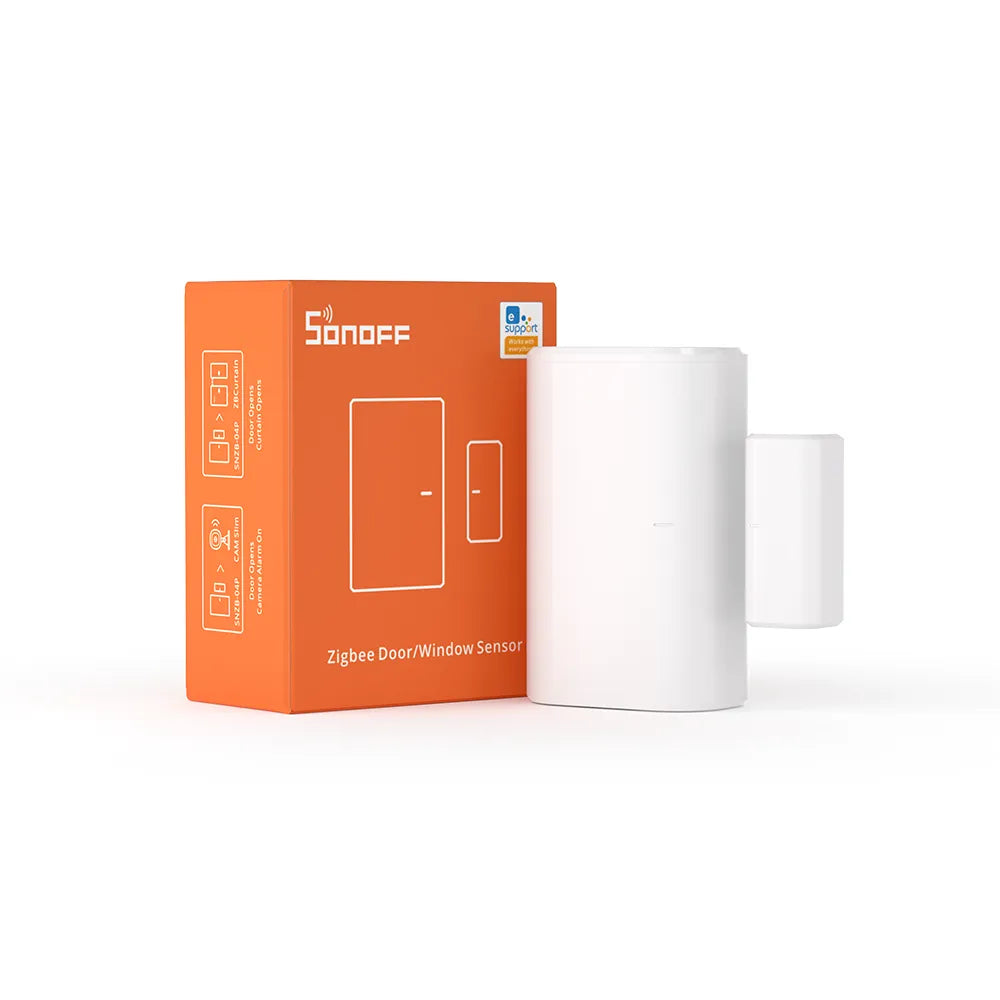

The SONOFF SenseGuard DW Gen2 (SNZB-04PR2) is a slim Zigbee door and window contact sensor with tamper detection, versatile magnet mounting, and up to three years of battery life on two standard AAA batteries. When a door or window opens—or if the sensor is removed—it can send app notifications and trigger automations such as sirens, camera recording, lights, or climate control. A Zigbee gateway is required.

KEY FEATURES

  • Tamper detection sends instant app alerts and can trigger Smart Scenes (for example a gateway siren) if the sensor is forced off or damaged
  • Use open/close or tamper status in automations for security and comfort—camera recording, sound and light alarms, lighting, or turning off climate control if a door or window stays open
  • Slim, discreet design; 45.1 g including batteries, so it takes up minimal space on a door or window
  • Horizontal or vertical magnet mounting, with a detachable magnet for tight, uneven, or unconventional frames
  • Detection gap up to 30 mm when the magnet is installed horizontally, or 15 mm when installed vertically
  • Powered by two standard AAA (LR03) batteries for easy replacement and up to 3 years of operation
  • Zigbee 3.0; works with eWeLink, Matter Bridge via compatible SONOFF hubs, and Home Assistant (Zigbee2MQTT / ZHA)

SPECIFICATIONS

Product name SenseGuard DW Gen2
Product series SenseGuard Series
Model SNZB-04PR2
Product type Zigbee door/window sensor
MCU TLSR8656F512ET32
Wireless Zigbee 3.0 (IEEE 802.15.4)
Power 3 V; 2 × LR03 AAA batteries (included)
Battery life Up to 3 years
Detection gap Up to 30 mm (horizontal mount) / 15 mm (vertical mount)
Color White
Dimensions Transmitter 90 × 26 × 13.5 mm; magnet 31 × 14 × 6.5 mm
Net weight 45.1 g (including batteries)
Casing PC
Environment Indoor; −10 °C to 60 °C; 5–95% RH, non-condensing

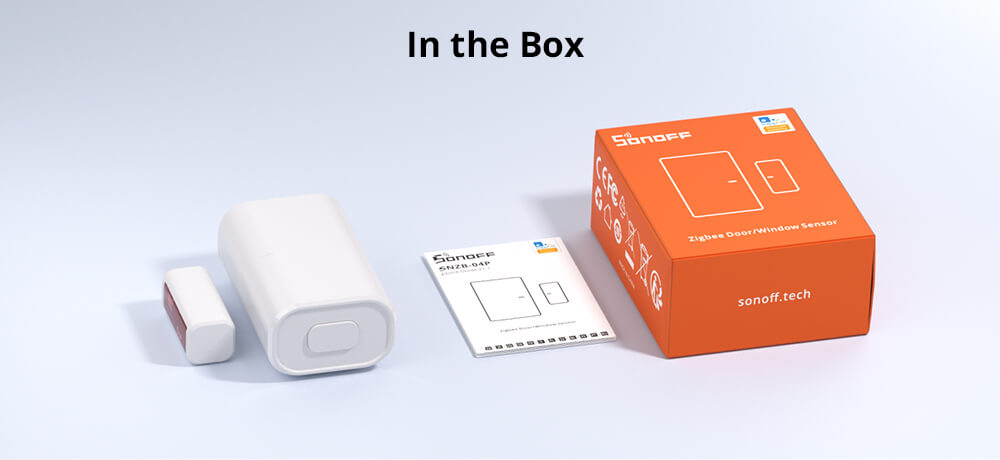

What's Included

  • (1) SNZB-04PR2 transmitter
  • (1) Magnet
  • (2) AAA / LR03 batteries (installed; remove the insulation tab to power on)
  • 3M adhesive
  • User manual

NOTES

  • A compatible Zigbee gateway/hub is required.
  • Recommended SONOFF gateways include ZBBridge-P, ZBBridge-U, NSPanel Pro, and iHost. Other compatible models include ZBDongle-P, ZBDongle-E, Dongle-M, Dongle-PMG24, and Dongle-LMG21.
  • Align the marks on the transmitter and magnet as closely as possible. When a door or window is closed, keep the gap under 30 mm for horizontal magnet mounting, or under 15 mm for vertical mounting.
  • Indoor use only. The user manual specifies mounting at heights of 2 m or less.
  • Home Assistant via ZHA currently requires a script. See SONOFF’s instructions at help.sonoff.tech/docs/SNZB-04PR2.
  • Official product page: sonoff.tech. User manual: SNZB-04PR2 User Manual (PDF).
  • SONOFF lists a 2-year hassle-free warranty for this product.
